Description

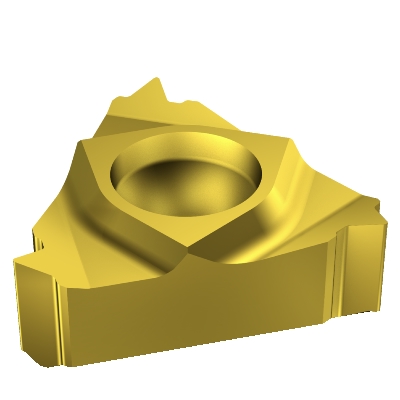

Product Description: R166.0L-22WH01-045 1020 T-Max? U-Lock insert for thread turning Specifications: Thread form type (THFT): WH55 Standard number (STDNO1): ISO 228-1982 Standard number (STDNO2): BS 2779-1973 Standard number (STDNO3): BS-84-1956 Thread type (TTP): INT Threads per inch (TPI): 4.5 Thread profile type (TPT): F Tooth count (NT): 1 Thread tolerance class (TCTR): CLASS A Theoretical thread height (HA): 0.176 inch Thread height difference (HB): 0.033 inch Profile distance ex (PDX): 0.104 inch Profile distance ey (PDY): 0.038 inch Insert size and shape (CUTINTSIZESHAPE): U-Lock 166/154 -internal size 22R Inscribed circle diameter (IC): 0.5 inch Hand (HAND): R Grade (GRADE): 1020 Substrate (SUBSTRATE): HC Coating (COATING): PVD TIN Insert thickness (S): 0.219 inch Weight of item (WT): 0.026 lb
